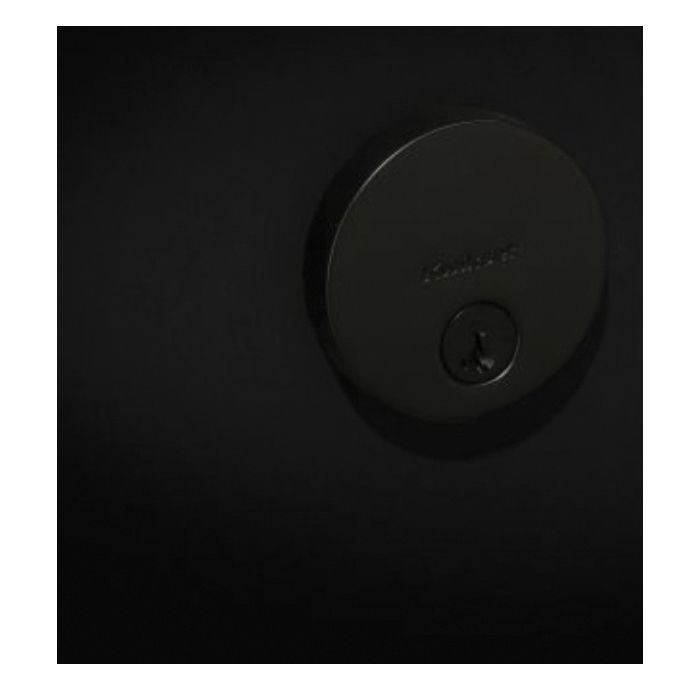

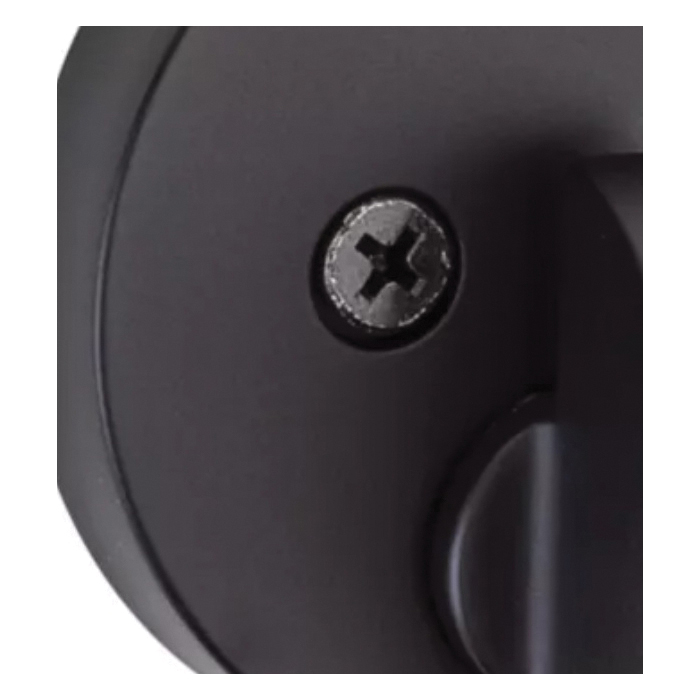

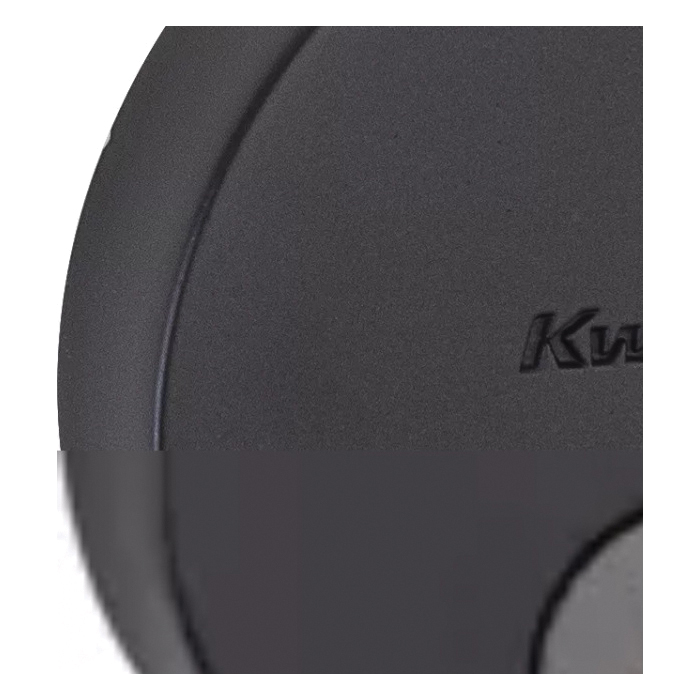

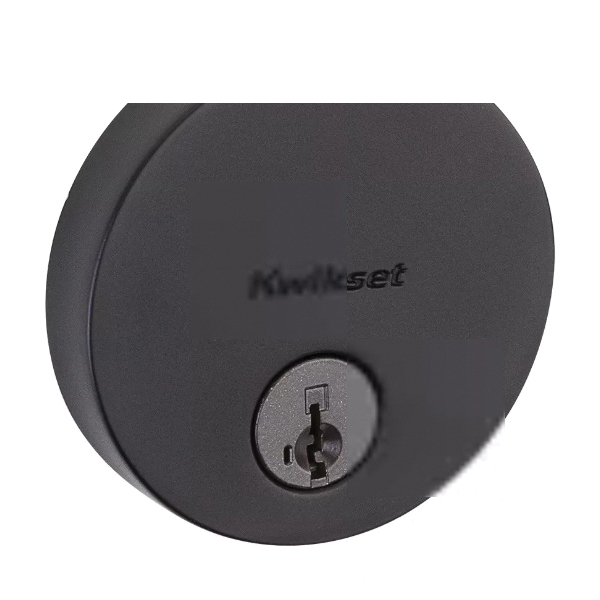

Kwikset 258 RDT 514 SMT C
Kwikset Uptown Deadbolt, Design: Round, Number of Cylinders: 1, Keyway Type: KW1, SC1, Re-Key Technology: SmartKey, Strike Type: Round, Backset Type: Adjustable, Backset Size: 2-3/8 to 2-3/4 in, Throw Length: 1 in, Cross Bore Diameter: 2-1/8 in, Door Thickness: 1-3/8 to 1-3/4 in, Interior Locking: Yes, Commercial/Residential: Residential, Metal, Matte, Black, Dimensions: 2-5/8 in Dia x 1/2 in H, Includes: Round Deadbolt Strike, 1 in Deadbolt Throw, SmartKey Tool, (3) Interchangeable Faceplates and (2) Keys
| Backset Size | : | 2-3/8 to 2-3/4 in |
| Backset Type | : | Adjustable |
| Color | : | Black |
| Commercial/Residential | : | Residential |
| Cross Bore Diameter | : | 2-1/8 in |
| Design | : | Round |
| Dimensions | : | 2-5/8 in Dia x 1/2 in H |
| Door Thickness | : | 1-3/8 to 1-3/4 in |
| Finish | : | Matte |
| Includes | : | Round Deadbolt Strike, 1 in Deadbolt Throw, SmartKey Tool, (3) Interchangeable Faceplates and (2) Keys |
| Interior Locking | : | Yes |
| Keyway Type | : | KW1, SC1 |
| Material | : | Metal |
| Number of Cylinders | : | 1 |
| Re-Key Technology | : | SmartKey |
| Strike Type | : | Round |
| Throw Length | : | 1 in |
- Designer style and excellent security with this Kwikset Signature Series™ product
- For use on exterior doors where keyed entry and security is needed
- Featuring SmartKey® Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
- SmartKey® Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
- Deadbolt operated by key outside and thumb turn inside
- Deadbolt latch has three-interchangeable faceplates - round corner, square corner and drive-in collar
- Latch has adjustable backset 2-3/8 to 2-3/4 in to fit all standard door preparations
- Locking mechanism functions with turn-piece on the interior of the lock
- Easily installs in minutes with just a screwdriver
Instruction/Installation Manual
Video Link
