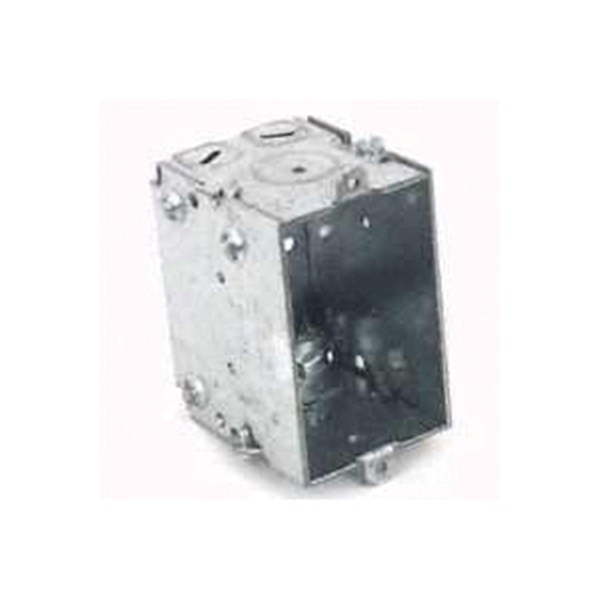

RACO 528
Four cable knockouts (end). Two 1/2 in conduit knockouts (end). One 1/2 in conduit knockout (bottom). With Non-metallic sheathed cable clamps. Leveling bumps. Less ears. 3 in x 2 in x 2-1/2 in D. 12.5 cu-in. Acceptable for use in 2 hr rated fire walls. UL listed.
| Cable Entry | : | Clamp |
| Color | : | Gray |
| Cubic Capacity | : | 12-1/2 cu-in |
| Dimensions | : | 2-1/2 in L x 2 in W x 3-3/8 in H |
| Finish | : | Galvanized |
| Knockout Size | : | 1/2 in |
| Material | : | Steel |
| Mounting Type | : | Bracket |
| Number Of Outlets | : | 1 |
| Number of Gangs | : | 1 |
| Number of Knockouts | : | 7 |
- Gangable switch boxes offer the option of constructing a box to hold two or more devices
- L-clamps provided for non-metallic sheathed cable
- Acceptable for use in 2 hr fire-rated walls
- Plaster ears allow the box to be used in old work applications
- Beveled corner box is designed to prevent the clamp screws from protruding into the back wall
