Romex 12/2UF-WGX50
Romex
Send Print

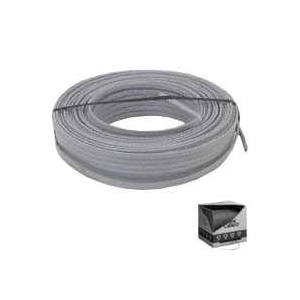

Romex 12/2UF-WGX50 Building Wire, 12 AWG Wire, 2-Conductor, 50 ft L, Copper Conductor, PVC Insulation, Nylon Sheath

  • Model Number: 12/2UF-WGX50
  • UPC: 032886266089
  • Product Code: 6431845
  • Store SKU: loading

  • Romex 12/2UF-WGX50 Building Wire, 12 AWG Wire, 2-Conductor, 50 ft L, Copper Conductor, PVC Insulation, Nylon Sheath

    • Availability:
      • Romex 12/2UF-WGX50

      Type THHN® insulation, rated 90 deg C, 600 V. Gray PVC jacket. For applications of direct burial, dwellings not exceeding 3 floors above-grade, underground feeder to outdoor lighting or apparatus, exposed or concealed wiring in damp, moist, wet, dry and corrosive locations, general branch circuit wiring and new wiring or replacement wiring. Flame-retardant, moisture, fungus and corrosion-resistant. Sunlight-resistant jacket. JC-30B Federal specification, ASTM B-3, ASTM B-8 and NY state DOS 16120-880923-2002. UL listed.

      Conductor Insulation    :    PVC
      Conductor Material    :    Copper
      Current Rating    :    20 A
      Length    :    50 ft
      Number Of Conductors    :    2
      Operating Temperature    :    90 deg C
      Sheath Color    :    Gray
      Sheath Material    :    Nylon
      Strands per Conductor    :    2
      Type    :    Type UF-B
      Voltage Rating    :    600 V
      Wire Size    :    12 AWG
      • Southwire® Type UF-B cable is manufactured as a 2 or 3 conductor cable, with or without a ground wire
      • Copper conductors are annealed (soft) copper, solid or compressed stranded
      • Phase conductors are PVC insulated, nylon jacketed, color-coded for identification purposes
      • Jacketed with sunlight, moisture and fungus-resistant gray PVC
      • Underground feeder and branch circuit cable
