EATON TWRSGF15W
EATON
Send Print

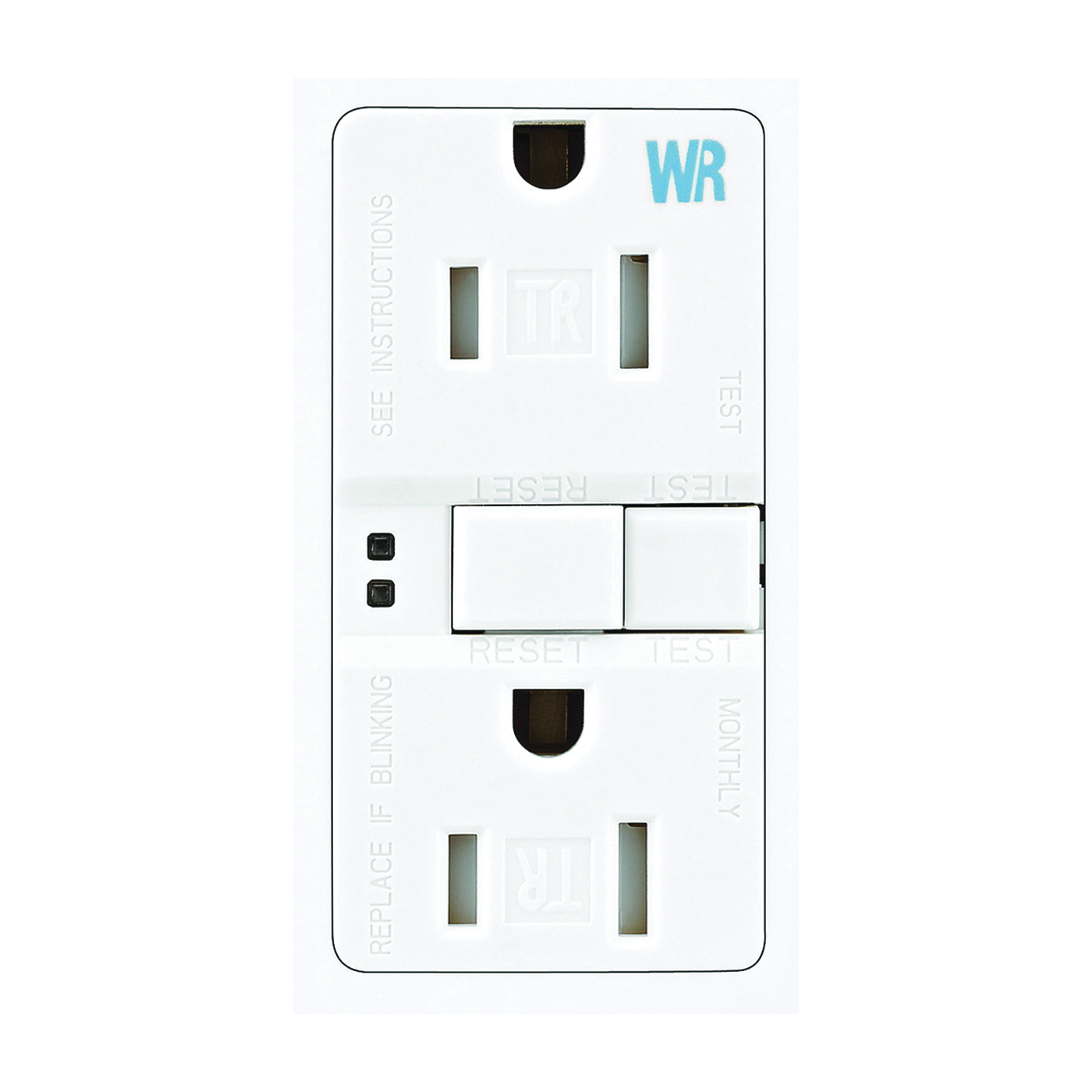

Eaton Wiring Devices TWRSGF15W GFCI Duplex Receptacle, Polypropylene, White, 2-Pole, 15 A, 125 V, 3-Wire

  • Model Number: TWRSGF15W
  • UPC: 032664742989
  • Product Code: TWRSGF15W
  • Store SKU: loading

  • Eaton Wiring Devices TWRSGF15W GFCI Duplex Receptacle, Polypropylene, White, 2-Pole, 15 A, 125 V, 3-Wire

    • Availability:
      • EATON TWRSGF15W

      Weather-resistant duplex GFCIs are built-to meet every need in commercial, industrial and institutional settings, whether permanent or temporary - and is fully compliant with the latest UL943 standards for GFCIs, providing the most recent change to the standard by offering self-testing capability. Complies with 2017 NEC Article 406.9 that states that all receptacles installed in wet or damp locations must be weather-resistant. Weather-resistant receptacles offer protection from rain, snow, ice, moisture and humidity when properly installed in an approved weather protective or while-in use cover. Weather-resistant receptacles are for use in any residential or commercial outdoor location. Designed with enhanced nylon and corrosion-resistant metal components weather-resistant receptacles are extra durable. Combine WR receptacles with any of our Weather Box while-in-use protective covers for tough protection against the elements.

      Color    :    White
      Current Rating    :    15 A
      Dimensions    :    4.2 in L x 1.68 in W x 1.27 in D
      Frequency Rating    :    60 Hz
      Includes    :    Wallplate
      Material    :    Polypropylene
      Mounting Type    :    Wall
      NEMA Configuration    :    5-15R
      Number Of Poles    :    2
      Number of Wires    :    3
      Operating Temperature    :    -35 to 66 deg C
      Voltage Rating    :    125 V
      Wire Size    :    14 to 10 AWG
      Wiring Type    :    Back, Side
      • Provides compliance with 2017 NEC Article 406.9 that states that all receptacles installed in wet and damp locations must be weather-resistant
      • Manufactured with the highest grade materials, durable impact-resistant thermoplastic face and back body is virtually unbreakable
      • TR designation provides visual identification that device has tamper-resistant shutters preventing insertion of foreign objects
      • WR identifier quickly indicates during inspections that a weather-resistant receptacle has been installed
      • Terminal screws backed out ready for wiring
      • Extra long and extra wide mounting straps
      • Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
      • Side wire terminals accept up to #10 solid or stranded wire
