EATON 1242-7FW-BOX
EATON
Send Print

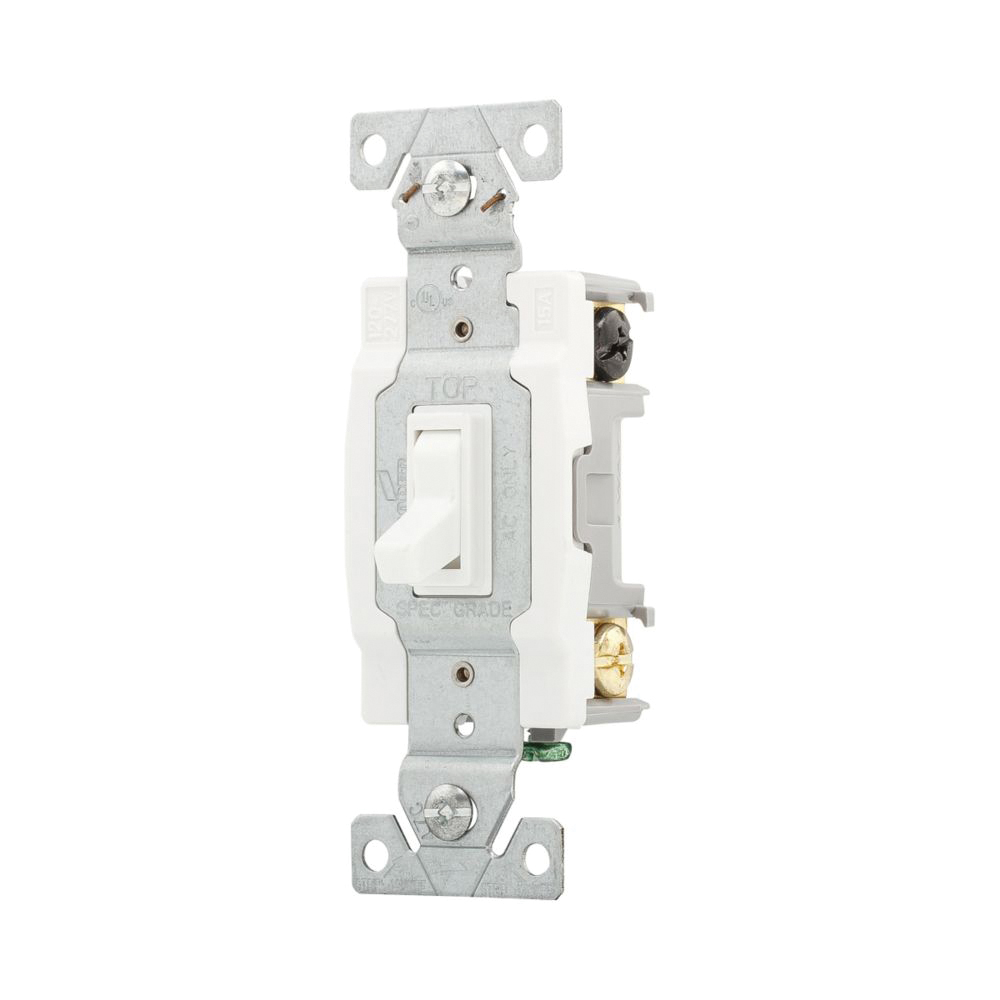

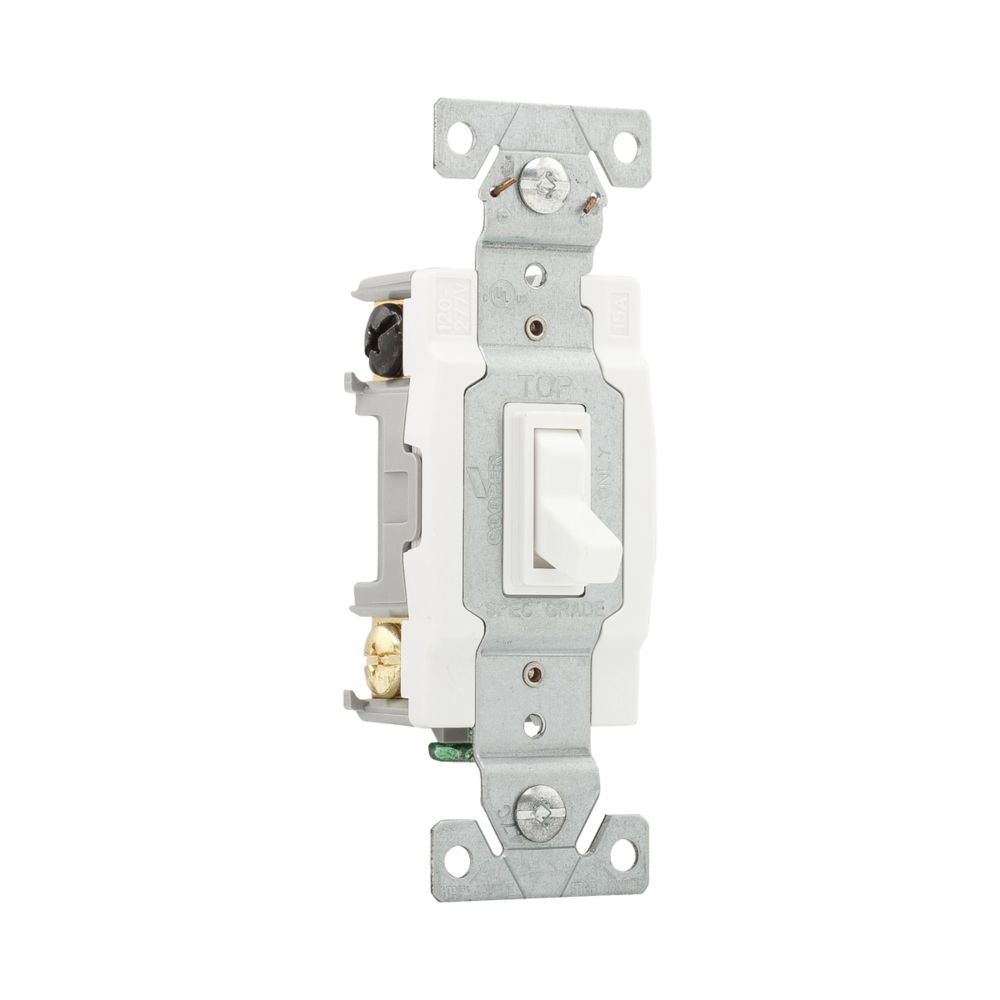

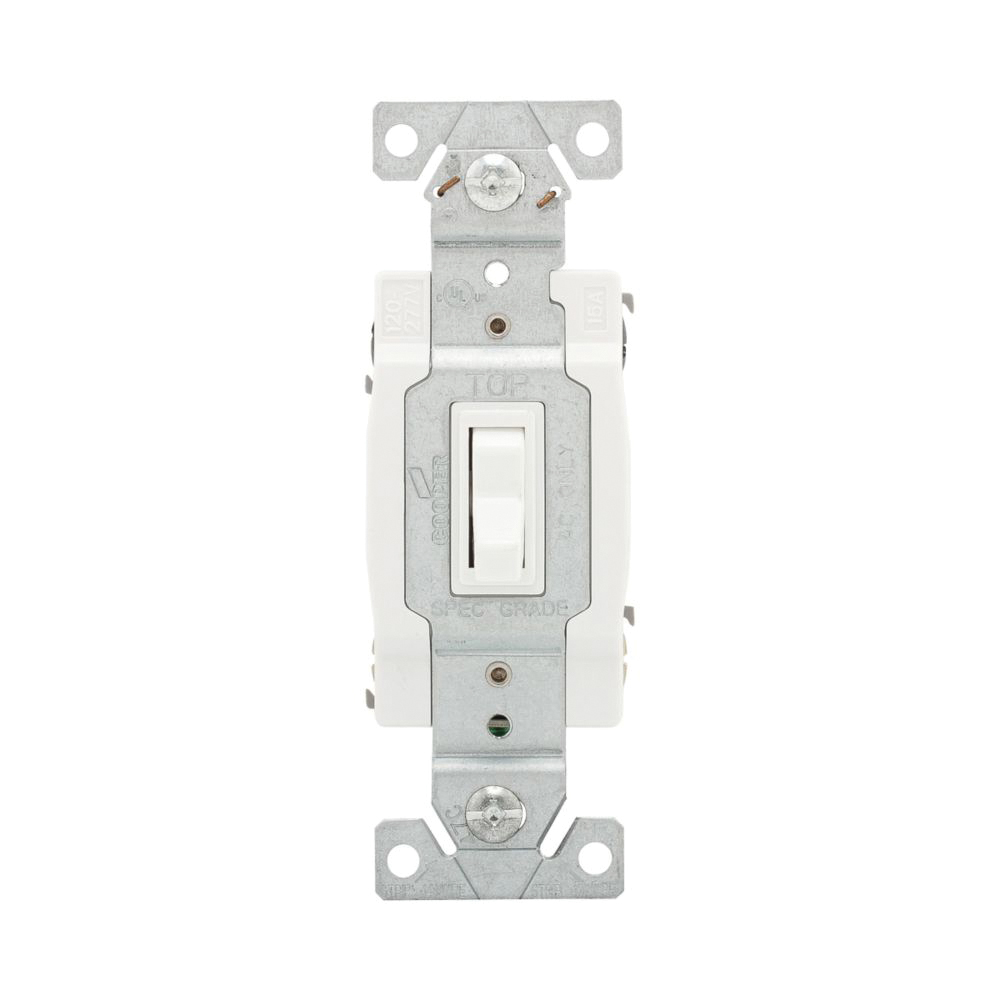

Eaton 1242-7FW-BOX Toggle Switch, 15 A, 120/277 V, 4-Position, Screw Terminal, White

  • Model Number: 1242-7FW-BOX
  • UPC: 032664174605
  • Product Code: 6325948
  • Store SKU: loading

  • Eaton 1242-7FW-BOX Toggle Switch, 15 A, 120/277 V, 4-Position, Screw Terminal, White

    • Availability:
      • EATON 1242-7FW-BOX

      Eaton Toggle Switch, 120/277 V, 15 A, Number of Poles: 1, Number of Positions: 4, Dielectric Strength: 1500 V, Terminal Type: Screw, Temperature Rating: -20 to 60 deg C, Strap Mounting, Housing Material: PVC/Polycarbonate/Thermoplastic, White

      Color    :    White
      Current Rating    :    15 A
      Dielectric Strength    :    1500 V
      Housing Material    :    PVC/Polycarbonate/Thermoplastic
      Mounting Type    :    Strap
      Number Of Poles    :    1
      Number of Positions    :    4
      Temperature Rating    :    -20 to 60 deg C
      Terminal Type    :    Screw
      Voltage Rating    :    120/277 V
      • Three-way switches feature additional push-in common termination for feed-through tapping
      • Push-in terminals accept #14 AWG solid wire only while side wire terminals accept up to #10 AWG solid wire
      • Long, broad mounting strap virtually eliminates floating installations
      • Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
      • Tri-combo screws accept slotted, Phillip's and Robertson-head tools for installation flexibility
      • Wire looper speeds termination of both #14 and #12 AWG wire
      • Lighted toggle glows in the Off position
