EATON 7737W-K-L
EATON
Send Print

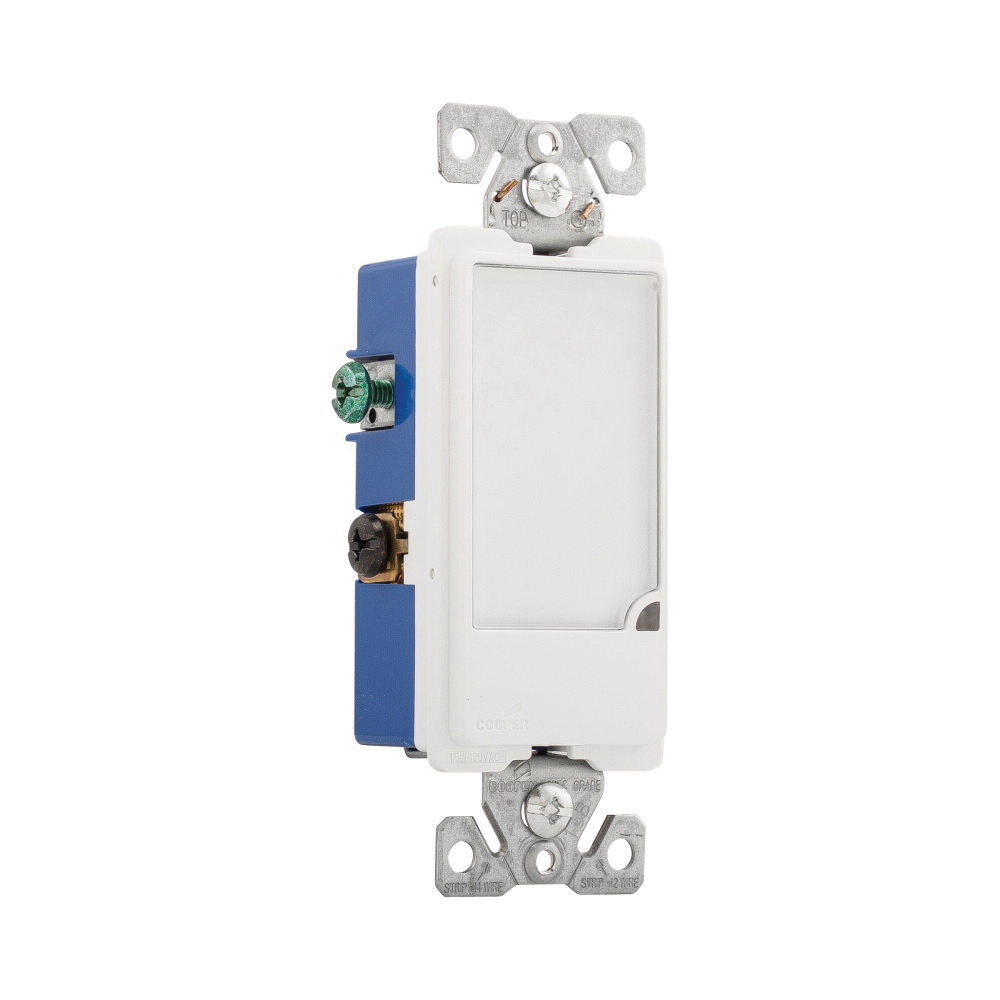

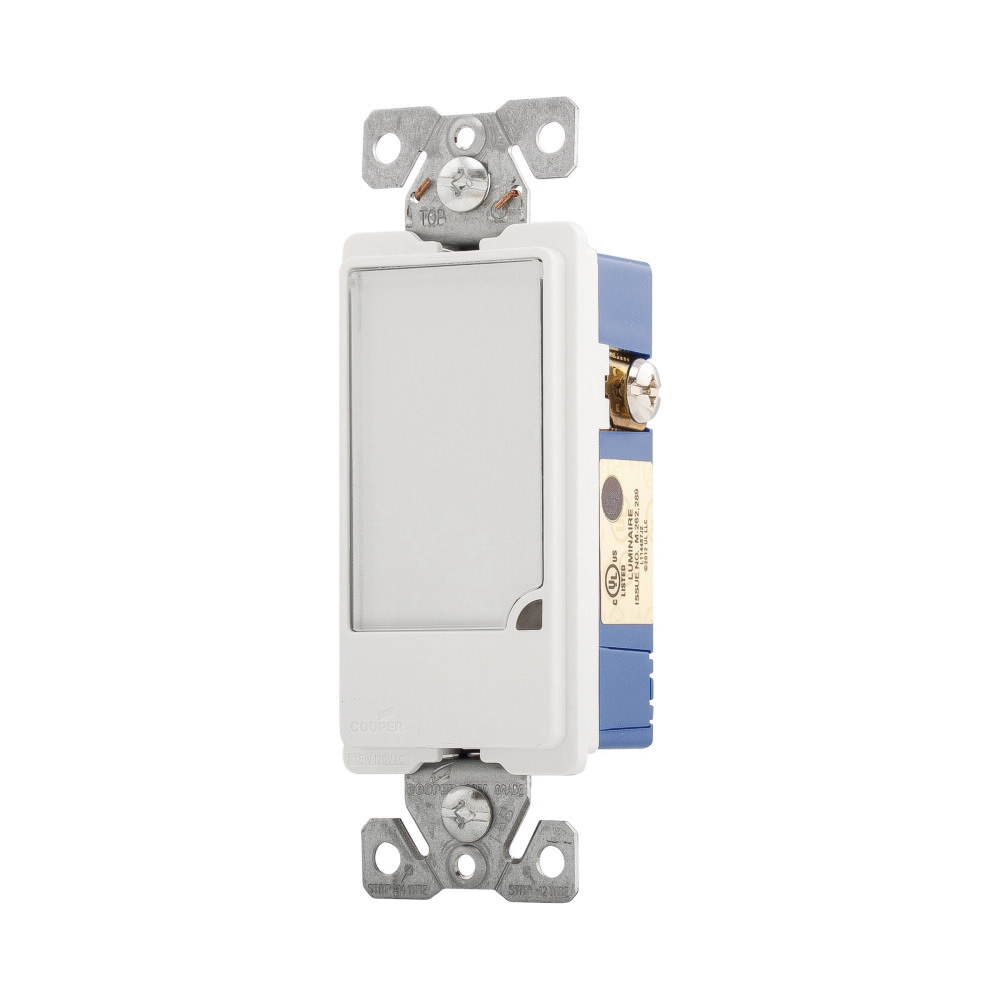

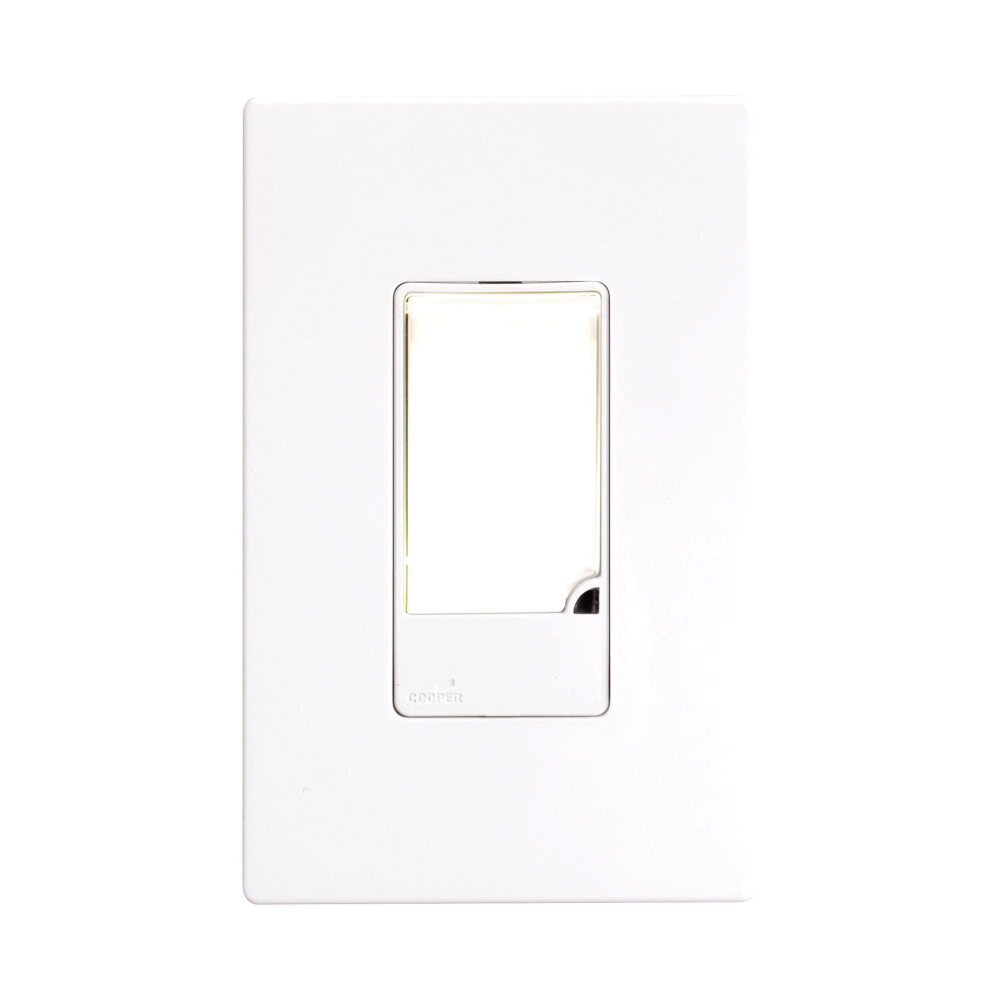

Eaton 7737W-K-L Wallbox Night Light, 15 A, 120 V, 1 W, 3-Lamp, LED Lamp, 140 Lumens, Thermoplastic Fixture

  • Model Number: 7737W-K-L
  • UPC: 032664736247
  • Product Code: 7737W
  • Store SKU: loading

  • Eaton 7737W-K-L Wallbox Night Light, 15 A, 120 V, 1 W, 3-Lamp, LED Lamp, 140 Lumens, Thermoplastic Fixture

    • Availability:
      • EATON 7737W-K-L

      Eaton Wallbox Night Light, 120 V, 15 A, Wattage Rating: 1 W, Lamp Type: LED, Number of Lamps: 3, Lumens: 140 Lumens, Ballast Type: Dimmable, Average Life: 50,000 hr, IP Rating: NEMA 5-15R, 5-20R, Temperature Rating: -20 to 60 deg C, Flush Mounting, Fixture Material: Thermoplastic, White, Dimensions: 4-1/4 in L x 2 in W x 2 in H

      Average Life    :    50, 000 hr
      Ballast Type    :    Dimmable
      Color    :    White
      Current Rating    :    15 A
      Dimensions    :    4-1/4 in L x 2 in W x 2 in H
      Fixture Material    :    Thermoplastic
      IP Rating    :    NEMA 5-15R, 5-20R
      Lamp Type    :    LED
      Lumens    :    140 Lumens
      Mounting Type    :    Flush
      Number Of Lamps    :    3
      Temperature Rating    :    -20 to 60 deg C
      Voltage Rating    :    120 V
      Wattage Rating    :    1 W
      • Nightlight is dimmable to desired setting
      • Nightlight is controlled by a photo sensor that turns on in the dark, off in light
      • Easily disable photo sensor for hi/med/low/off settings
      • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
      • Thermoplastic top and back body are virtually unbreakable to deliver years of durable performance
      • Steel mounting strap is zinc-plated for added corrosion resistance
      • Ultrasonic welding and integrated construction of the strap and body provide superior ground integrity even under heavy use
      • Convenient built-in wire strippers speed installation
      • Backwire clamps on side terminals provide for easy installation of 12 AWG and 14 AWG
      • Tri-combo screw heads offer greater installation flexibility
      • pdf Catalog https://assets.unilogcorp.com/187/ITEM/DOC/EATON_102758771_Catalog.pdf
      • pdf Specification Sheet https://assets.unilogcorp.com/187/ITEM/DOC/EATON_102758771_Specification_Sheet.pdf
