Arrow Hart

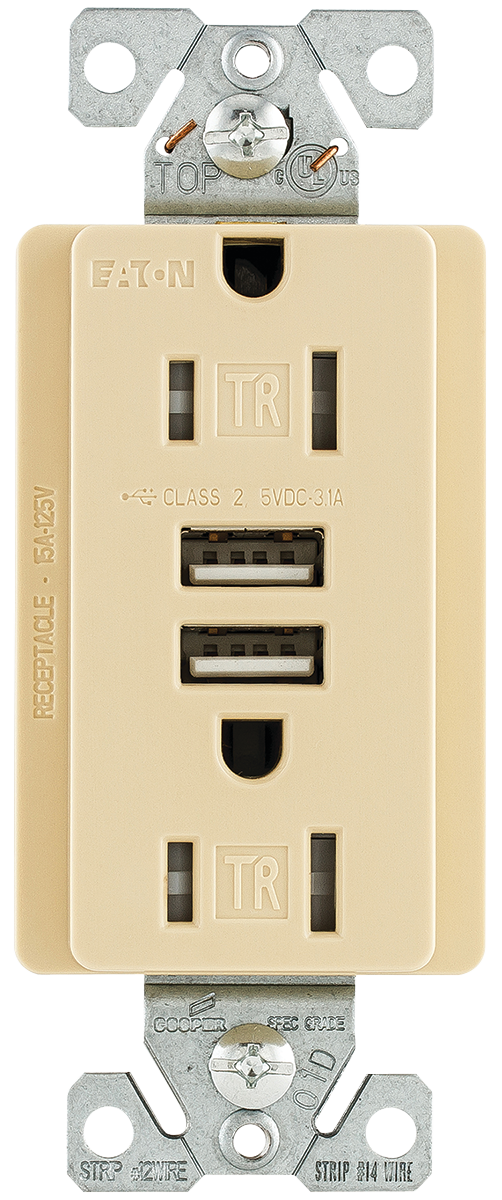

Arrow Hart TR7755V-K Decorator USB Charger and Duplex Receptacle, 2-Pole, 15, 3 A, 125/5 VAC/VDC, 2-USB Port, Ivory
- Model Number: TR7755V-K
- UPC: 032664731594
- Product Code: TR7765V
-
Store SKU:
-
Arrow Hart TR7755V-K Decorator USB Charger and Duplex Receptacle, 2-Pole, 15, 3 A, 125/5 VAC/VDC, 2-USB Port, Ivory
-
Promo Price:
Arrow Hart TR7755V-K
Arrow Hart Decorator USB Charger and Duplex Receptacle, 125/5 VAC/VDC, 15, 3 A, Number of Poles: 2, Number of Wires: 3, Number of USB Ports: 2, Wiring Type: Wire Leads, Wire Size: 12 to 14 AWG, NEMA Configuration: NEMA 5-15R, Operating Temperature: -4 to 140 deg F, Flush Mounting, Thermoplastic, Ivory, Dimensions: 2.75 in D x 4.36 in H
| Color | : | Ivory |
| Current Rating | : | 15, 3 A |
| Dimensions | : | 2.75 in D x 4.36 in H |
| Material | : | Thermoplastic |
| Mounting Type | : | Flush |
| NEMA Configuration | : | NEMA 5-15R |
| Number Of Poles | : | 2 |
| Number Of USB Ports | : | 2 |
| Number of Wires | : | 3 |
| Operating Temperature | : | -4 to 140 deg F |
| Type | : | Decorator |
| Voltage Rating | : | 125/5 VAC/VDC |
| Wire Size | : | 12 to 14 AWG |
| Wiring Type | : | Wire Leads |
- Standard AC receptacle with two USB-Charging ports for conveniently charging most electronic components
- Dual USB-Charging ports charge most compatible electronic devices that charge via a 5 V power adapter
- Three pre-stripped 6 in wire leads for line, neutral and ground for quick and easy installation
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
- Thermoplastic top and back body are virtually unbreakable to deliver years of durable performance
- Triple wipe blade contacts and double-wipe ground contacts to ensure long term plug retention
