Louisville L-3022-28PT
Louisville
Send Print

Louisville L-3022-PT Series L-3022-28PT Extension Ladder, 27 ft 7 in H Reach, 300 lb, 1-1/2 in D Step, Fiberglass

  • Model Number: L-3022-28PT
  • UPC: 728865112583
  • Product Code: 1026467
  • Store SKU: loading

  • Louisville L-3022-PT Series L-3022-28PT Extension Ladder, 27 ft 7 in H Reach, 300 lb, 1-1/2 in D Step, Fiberglass

    • Availability:
      • Louisville L-3022-28PT

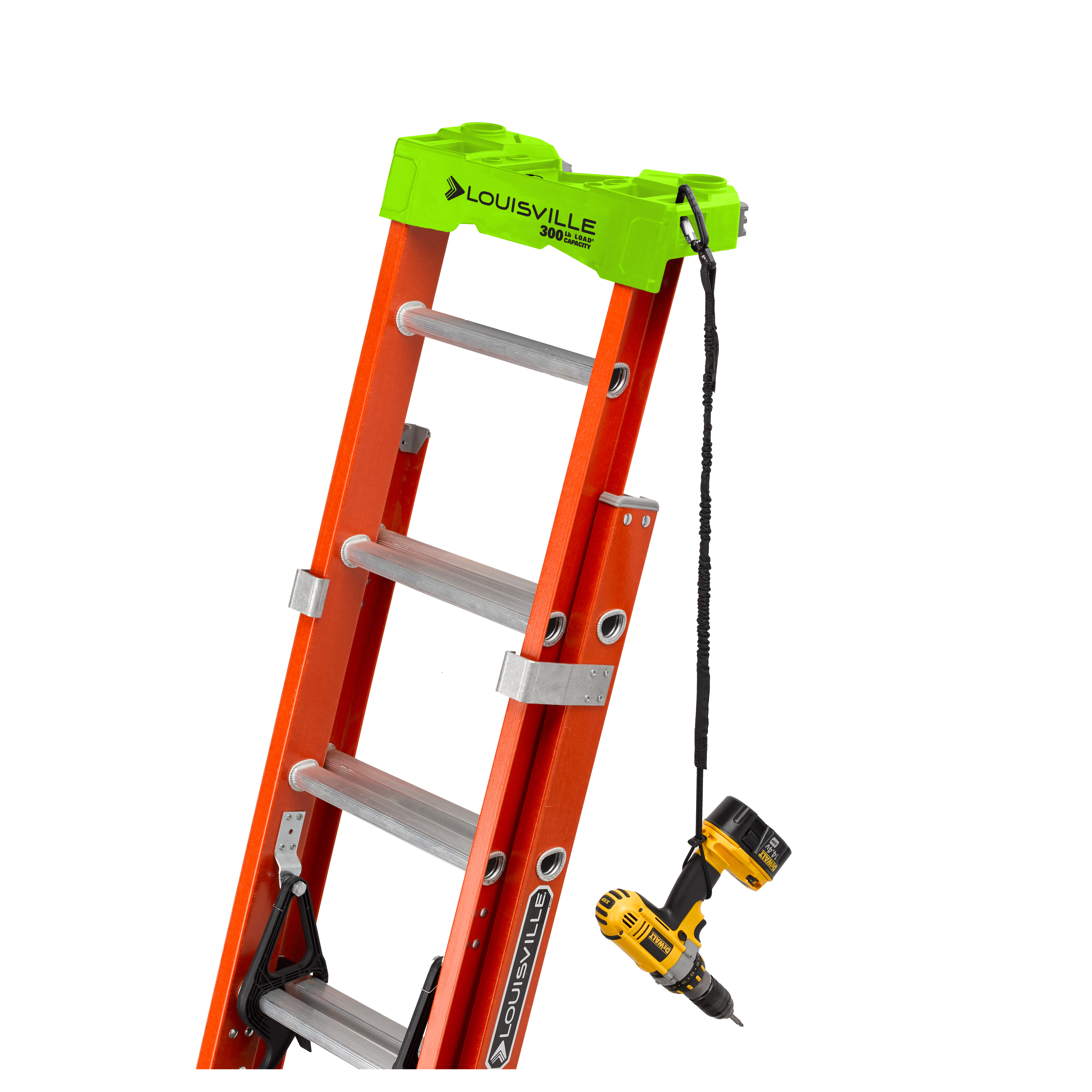

      This Louisville 28 ft fiberglass extension ladder has a 300 lb load capacity, rated ANSI Type IA. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made. This ladder also includes our patented ProTop™ specially designed to increase productivity. This innovative ProTop™ features a corner grip, pole grip, integrated bumper and work tray, all compact and accessible in a spacious design. This ladder also features outside slide guides, fully serrated D-shape rungs for a slip-resistant surface, non-marring rail end caps, QuickLatch rung lock for better secure operation, rope and pulley and full heavy-duty metal boot with steel swivel safety shoes to be used with the tread down or in spike position. The Louisville L-3022-28PT fiberglass extension ladder meets or exceeds the safety standards set by ANSI, CSA and OSHA.

      Adjustable Increments    :    12 in
      Base Width    :    17.1 in
      Closed Depth    :    6-3/8 in
      Closed Height    :    174 in
      Closed Volume    :    11.434 cu-ft
      Closed Width    :    17.812 in
      Color    :    Orange
      Duty Rating    :    Type IA
      Extension Length    :    25 ft
      Fly Width    :    13.688 in Inside, 16.088 in Outside
      Includes    :    Rail Endcaps, Rope and Pulley
      Material    :    Fiberglass
      Number Of Steps    :    28
      Number of Rungs    :    28
      Number of Sections    :    2
      Rail Depth    :    3-1/4 in
      Rail Type    :    Non-Conductive
      Reach Height    :    27 ft 7 in
      Rung Size    :    12 in
      Rung Type    :    D-Shaped
      Section Length    :    14 ft
      Size    :    28 ft
      Standing Height    :    21.166 in
      Step Depth    :    1-1/2 in
      Tread Type    :    Ribbed
      Weight Capacity    :    300 lb
      • Includes our custom engineered MAXLOCK that is made from a patented and advanced molecular polymer
      • Our MAXLOCK is the strongest, toughest and lightest rung lock ever made

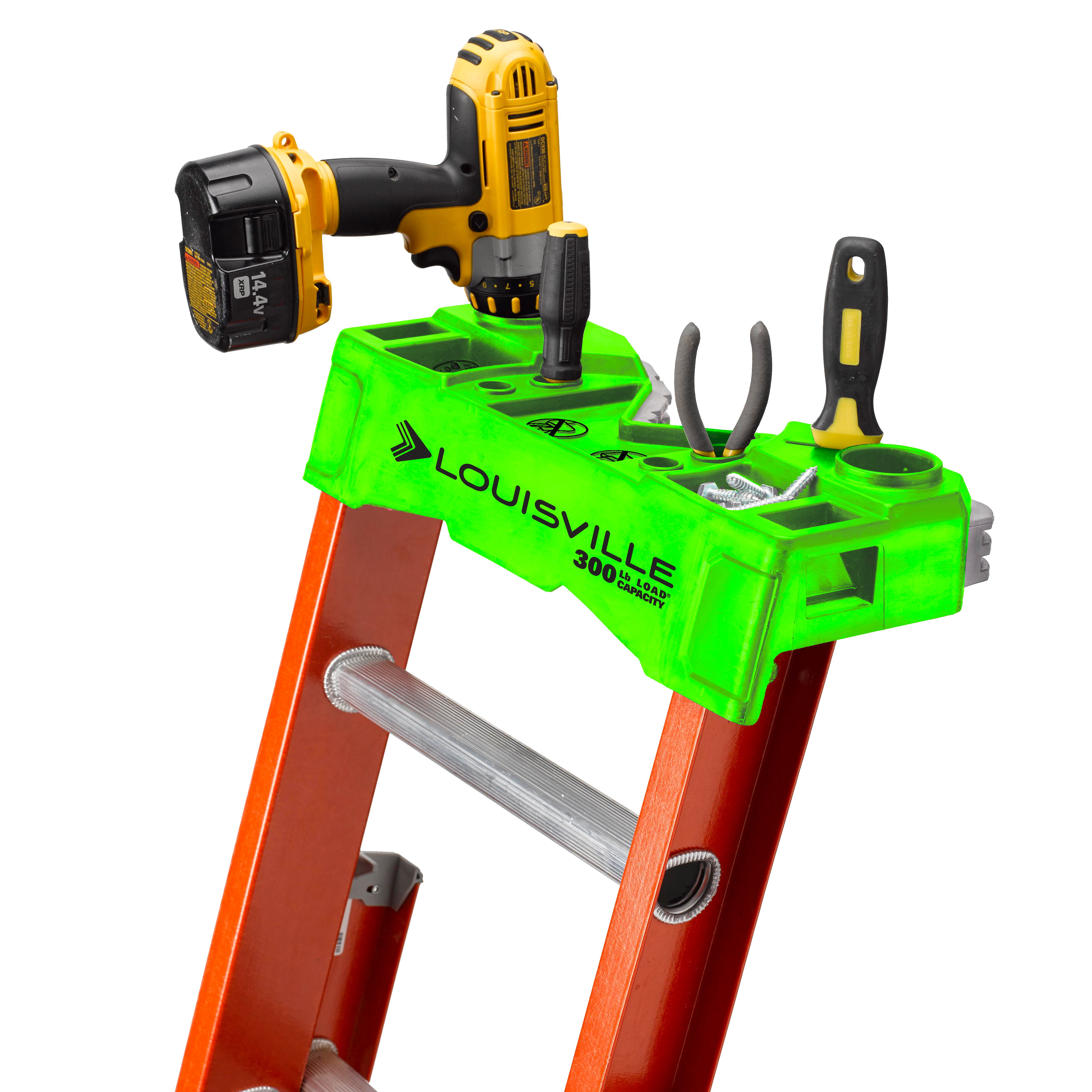

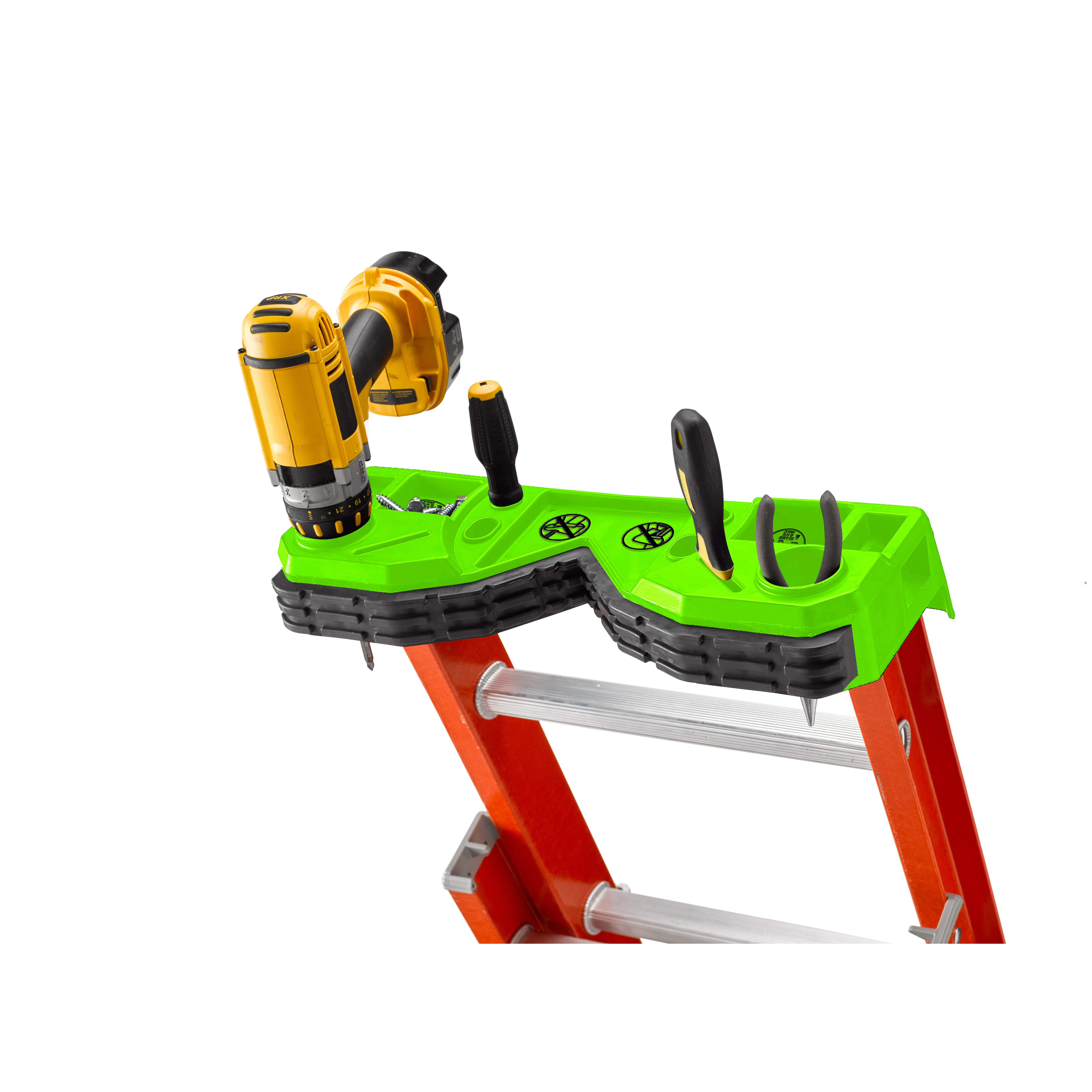

      • Protop with multiple tool slots and magnet

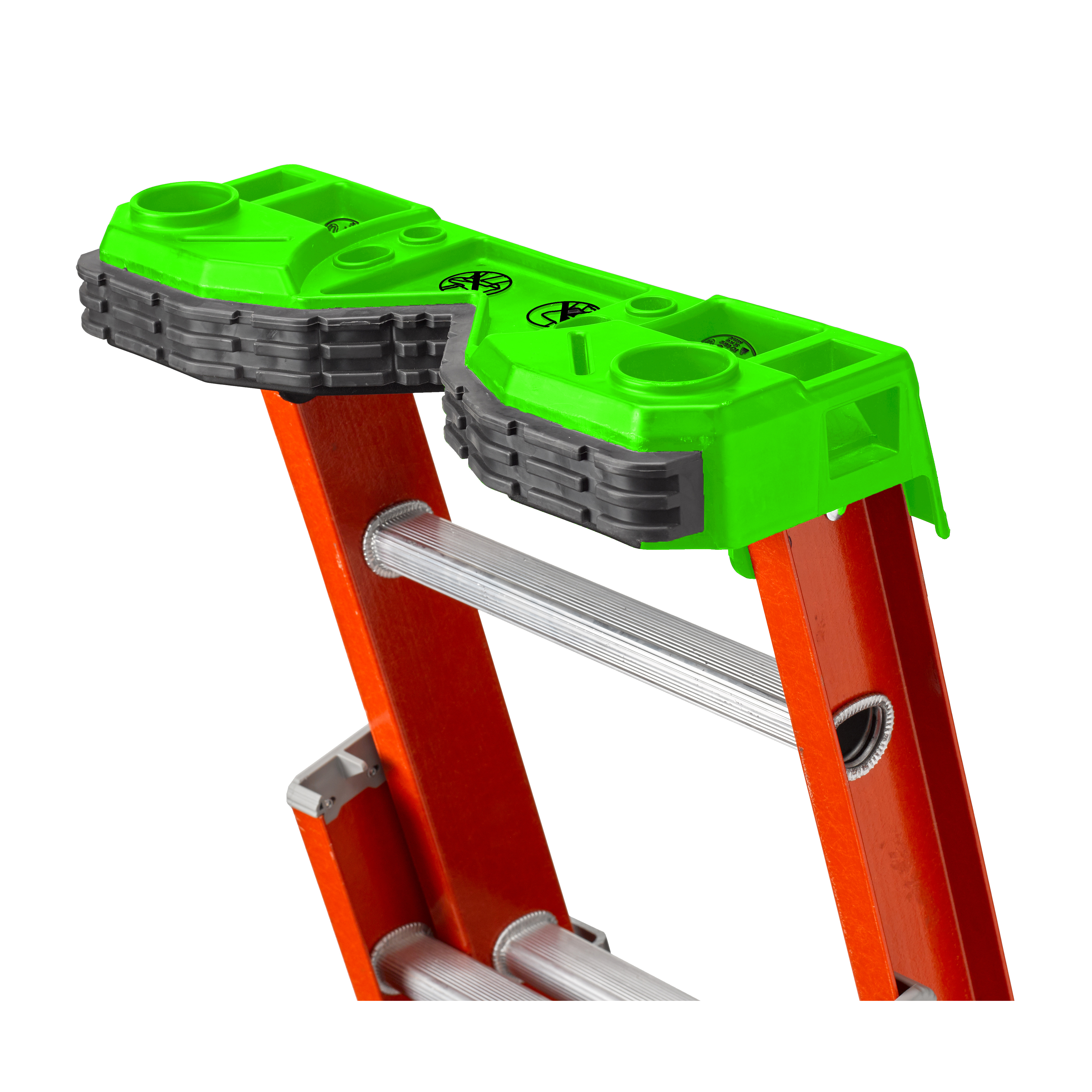

      • V-shape ProTop™ allows the ladder to lean against walls, buildings and poles
      • Outside slide guides
      • Patented quicklatch runglock system
      • Steel swivel safety shoe with metal shield
      • Mar-resistant rail end caps
