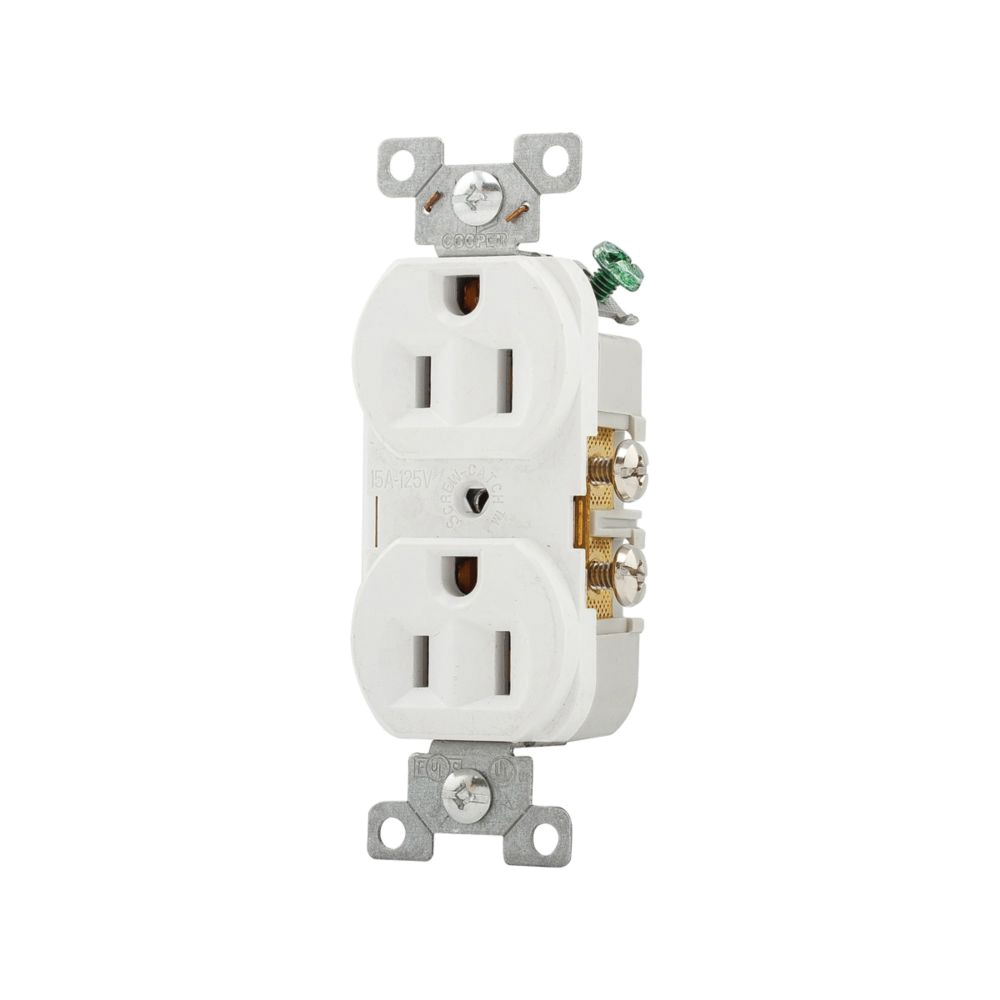

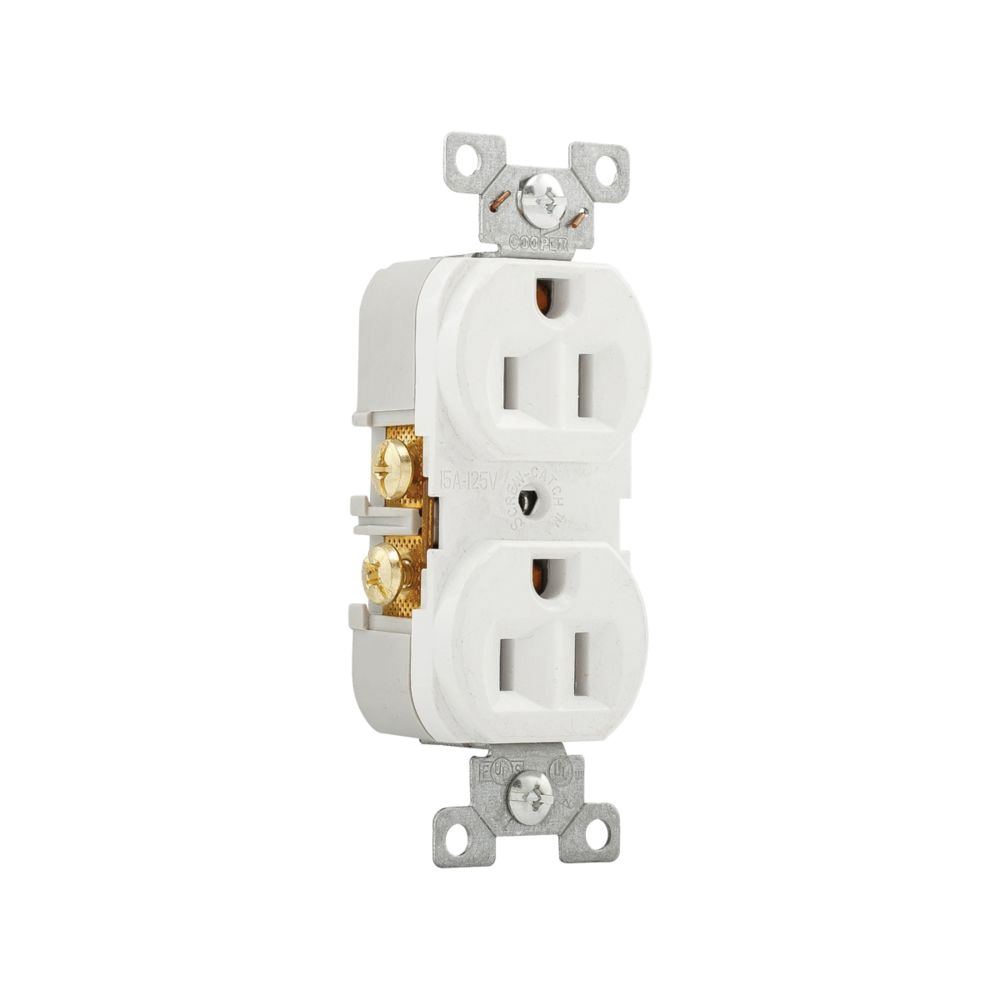

Eaton Cooper Wiring CR15W
Commercial specification-grade straight blade receptacles - 15 A-125 V, NEMA 5-15R. Engineered for safe, reliable performance, these UL 498 and Federal Specification WC-596 listed devices provide maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time.
| Color | : | White |
| Current Rating | : | 15 A |
| Dimensions | : | 4 in L x 1.24 in W x 0.79 in D |
| Frequency Rating | : | 60 Hz |
| Material | : | PVC |
| Mounting Type | : | Yoke |
| NEMA Configuration | : | 5-15R |
| Number Of Poles | : | 2 |
| Number of Wires | : | 3 |
| Operating Temperature | : | -20 to 60 deg C |
| Voltage Rating | : | 125 V |
| Wire Size | : | 14 to 10 AWG |
| Wiring Type | : | Side |
- Sturdy, compact design meets the demands of commercial spec grade performance
- Excellent plug blade retention provided by 0.032 in (0.81mm) triple-wipe brass line contacts and 0.050 in (1.27mm) brass ground
- High impact-and chemical-resistant nylon face
- 0.035 in galvanized steel, wraparound yoke mounting strap for great assembly security, extra length/width helps reach large panel cutouts for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Screw-Catch feature on duplex devices speeds mounting of wallplates
