TE CPGI-ALR-LC-120
TE
Send Print

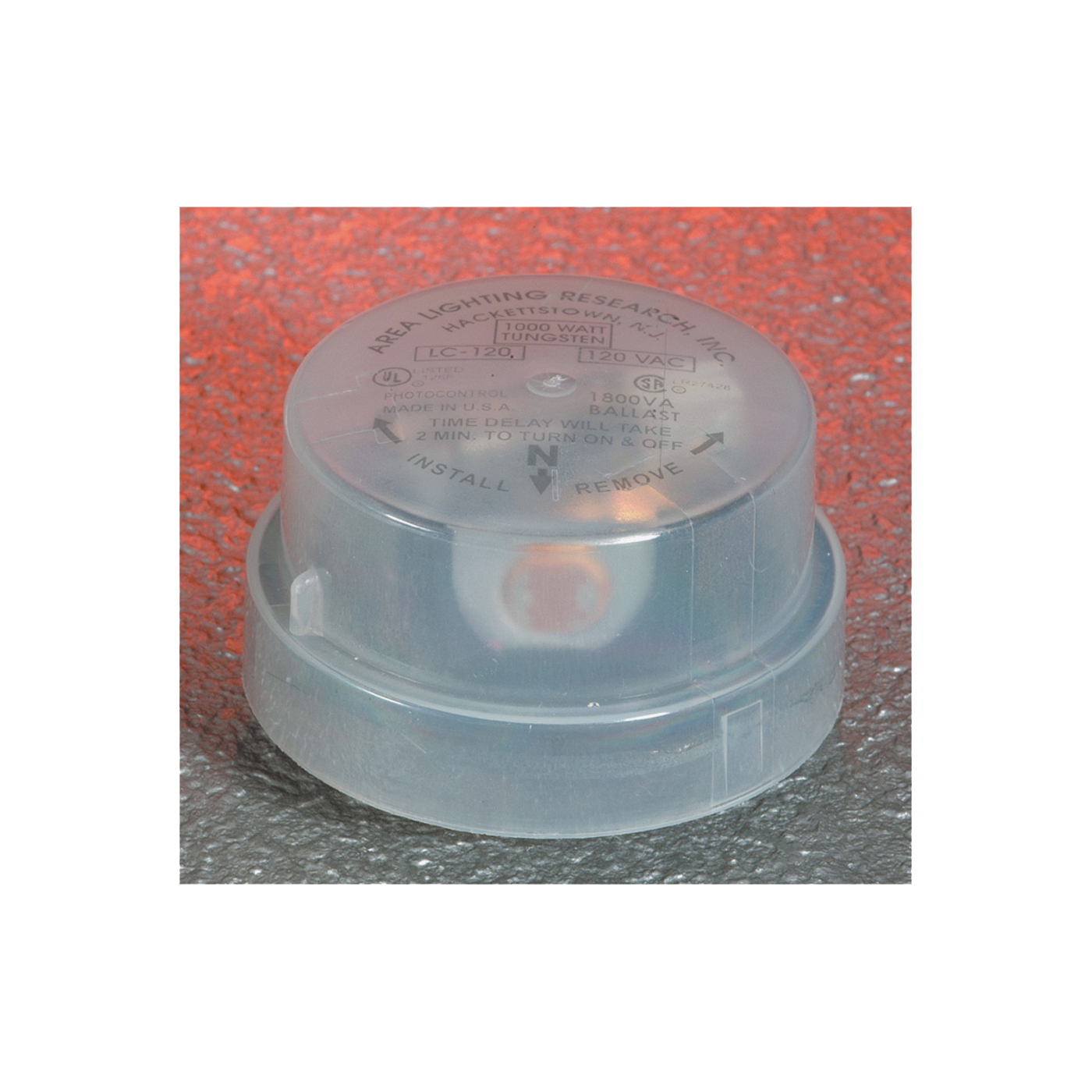

TE CPGI-ALR-LC-120 Photocontrol, Residential-Grade, 2.87 in W x 1.98 in H Dimensions, Noryl/Polycarbonate

  • Model Number: CPGI-ALR-LC-120
  • UPC: 045686001569
  • Product Code: PCYL
  • Store SKU: loading

  • TE CPGI-ALR-LC-120 Photocontrol, Residential-Grade, 2.87 in W x 1.98 in H Dimensions, Noryl/Polycarbonate

    • Availability:
      • TE CPGI-ALR-LC-120

      Residential-grade electrical component. Clear polycarbonate housing. Replacement photocontrol for mercury vapor and/or high-pressure sodium luminaires. 1000 W. Heavy-duty thermal bimetal switch. 30 to 45 secs time delay. Fail mode is on. UL and CSA listed, ANSI C136.10 compliant.

      Dimensions    :    2.87 in W x 1.98 in H
      Material    :    Noryl/Polycarbonate
      Specifications    :    120 V, 1000 W, 50 to 60 Hz, 1800 VA Ballast Load Rating, 1.5 Fc Turn On, 4:1 Off/On Ratio
      Type    :    Residential-Grade
      • Tyco Electronics LC Series offers a locking style control ideal for residential lighting applications
      • The LC Series locking-type photo control offers an economical and cost-effective means of controlling residential lighting systems from dusk to dawn
      • LC controls are a ideal and reliable solution for lighting driveways, patios, decks, entryways or other areas around the home where security lighting is desired
      • Heavy-duty thermal bi-metal switch
      • 30 to 45 secs time delay
      • 1/2 in cadmium sulfide cell light sensor
      • -40 to 65 deg C temperature range
      • SPST thermal bi-metallic switch
