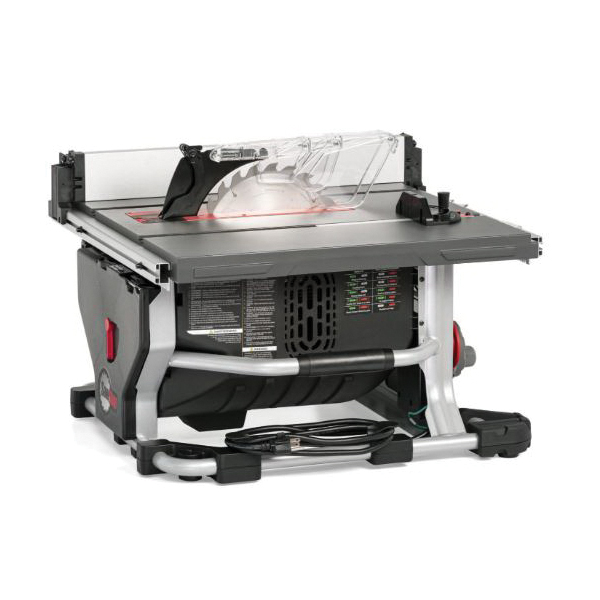

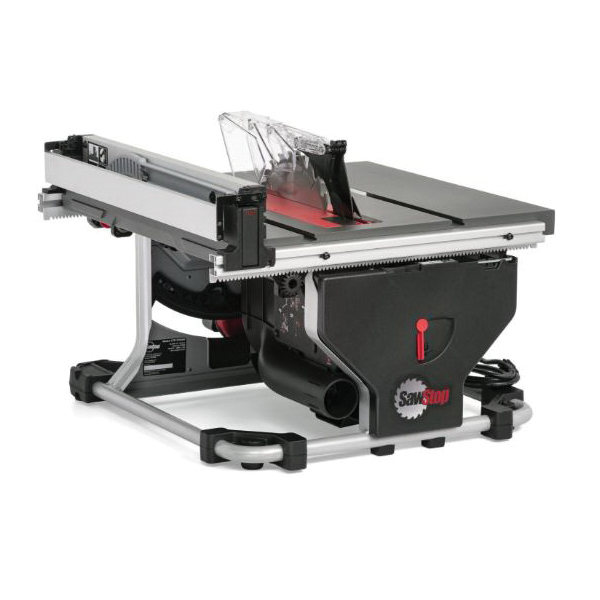

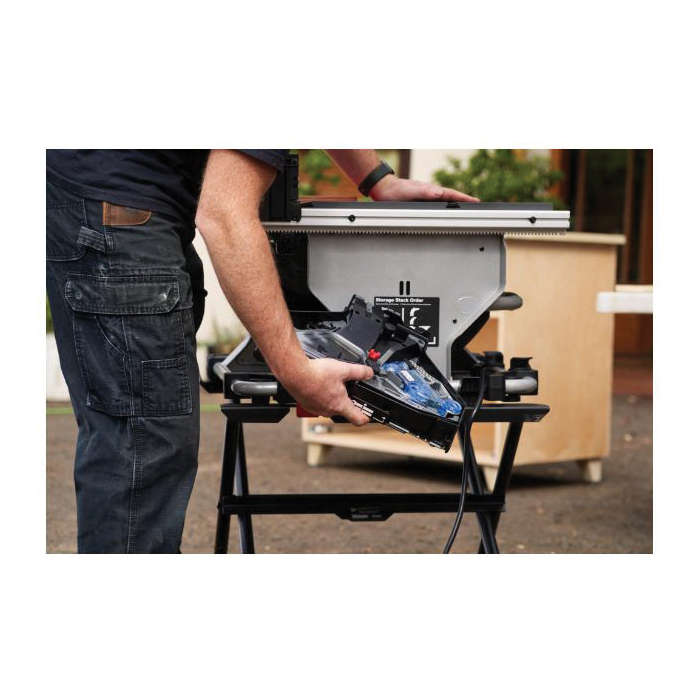

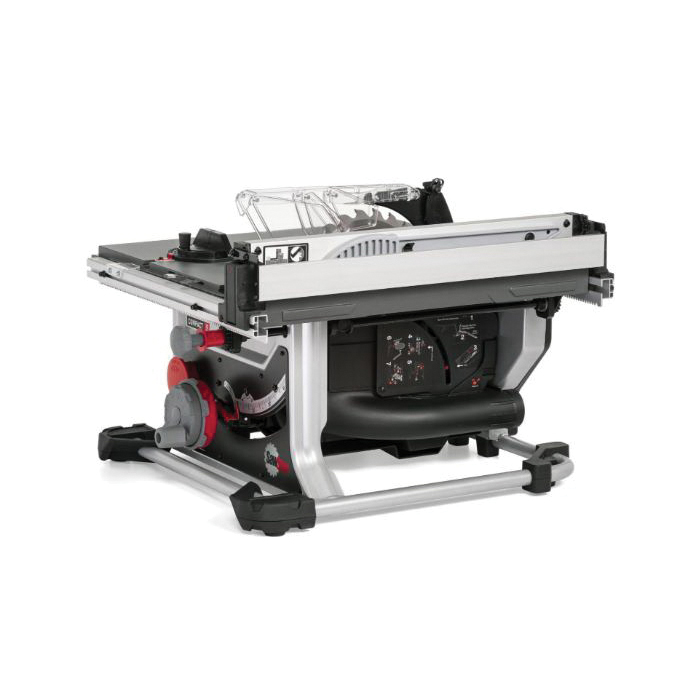

The compact table saw is the smallest, most portable saw in the SawStop line-up. It provides durability, precision and power that can be taken to any job site. 10 in blade for maximum cut capacity rack and pinion fence the rack and pinion fence is easy to adjust and reliably square, with a built-in high and low face that supports all kinds of cuts. Quick-tilt bevel with micro adjustments. Quickly and easily tilt the blade to your ideal angle with just one hand. The micro adjust feature provides the ability to dial in a precise cutting angle. SawStop's patented safety system stops a spinning blade on contact with skin. The blade stops in less than 5 ms and drops below the table, minimizing a potentially life altering injury to a mere scratch. On saw storage compartment everything has its place stow away tools and accessories in one location for easy access and quick retrieval.
| Blade Diameter | : | 10 in |
| Current Rating | : | 15 A |
| Cutting Angle | : | 0, 45 deg |
| Dimensions | : | 14-1/4 in H x 23-1/2 in W x 27 in D |
| Frequency Rating | : | 60 Hz |
| Includes | : | (1) Miter Gauge, (1) Brake Cartridge (Installed), (1) 4 mm Hex Key, (2) Blade Wrenches, (1) Riving Knife (Installed), (1) Blade Guard with Spreader and Anti-Kickback Pawl, (1) 24 Tooth Ripping Blade (Installed), (1) Push Stick, (1) Table Saw Insert (Installed) |
| Maximum Cutting Depth at 45 degrees | : | 2-1/8 in |
| Number of Phases | : | 1 |
| Speed Rating | : | 4000 rpm |
| Table Dimensions | : | 23 in W x 22-5/8 in D |
| Voltage Rating | : | 120 VAC |
- Rigid tube structure and rubber feet provide a durable, stable cutting experience
Owners/User Manual
Video Link
