Siemens E0816ML1125S
Siemens
Send Print

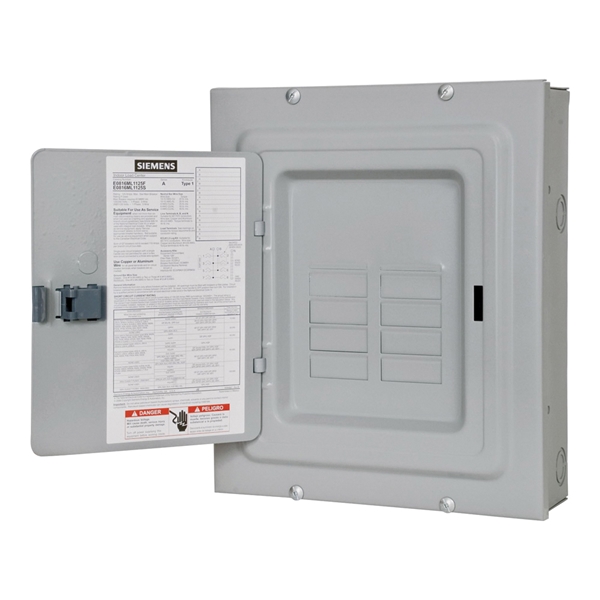

Siemens Murray E E0816ML1125S Load Center, 125 A, 8 -Space, 16 -Circuit, Main Lug, NEMA 1 Enclosure, Gray

  • Model Number: E0816ML1125S
  • UPC: 783643202122
  • Product Code: BR816L125FDP
  • Store SKU: loading

  • Siemens Murray E E0816ML1125S Load Center, 125 A, 8 -Space, 16 -Circuit, Main Lug, NEMA 1 Enclosure, Gray

    • Availability:
      • Siemens E0816ML1125S

      Code-gauge steel enclosure. Single phase, 3-wire, solid neutral, 8 spaces and 16 circuits maximum 1-pole, 4 QP breakers maximum 2-pole, 120/240 V. 10,000 AIR. One piece plated aluminum bus bar. 100% circuit breaker twist outs. Positive load side circuit breaker hook rail. Suitable for use as service entrance equipment when a main breaker (125 A maximum) is back-fed in branch position and used with main breaker retainer clip No MBR1. When used as service equipment, any unused neutral position may be used for equipment grounding. Rotate entire device 180 deg for bottom feed. Gray enamel finish. 12-3/8 in x 14-3/4 in x 3-7/8 in. UL listed, complies fully with NEC and UL requirements for Class CTL.

      Breaker/Load Center Type    :    Main Lug
      Bus Bar Material    :    Aluminum
      Cable Size    :    #4 to 2/0 AWG
      Color    :    Gray
      Current Rating    :    125 A
      Enclosure Type    :    NEMA 1
      Interrupt Rating    :    100 kA
      Mounting Type    :    Surface
      Number of Circuits    :    16
      Number of Phases    :    1
      Number of Spaces    :    8
      Voltage Rating    :    120/240 V
      Wiring Configuration    :    3-Wire
