EATON SGF15W-SP
EATON
Send Print

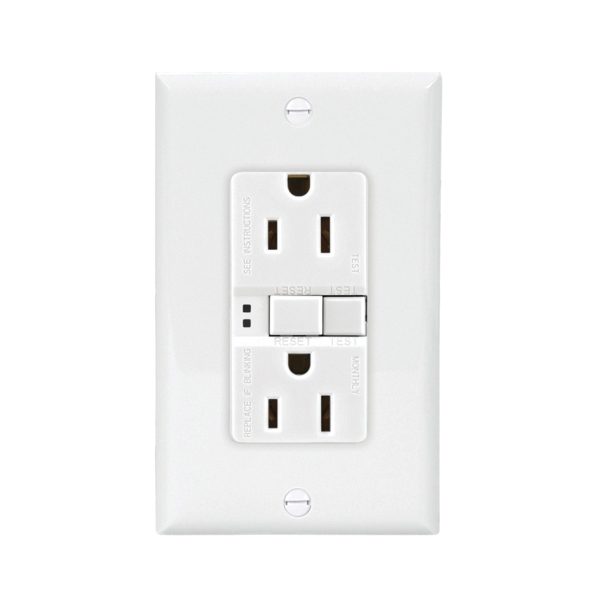

Eaton Wiring Devices SGF15W-SP GFCI Duplex Receptacle, Polypropylene, White, 2-Pole, 15 A, 125 V, Back, Side Wiring

  • Model Number: SGF15W-SP
  • UPC: 032664742460
  • Product Code: 7335771
  • Store SKU: loading

  • Eaton Wiring Devices SGF15W-SP GFCI Duplex Receptacle, Polypropylene, White, 2-Pole, 15 A, 125 V, Back, Side Wiring

    • Availability:
      • EATON SGF15W-SP

      Eaton's Arrow Hart line of GFCI receptacles ensure electrical shock protection with periodical auto-matic testing. If no GFCI protection is present, the receptacle will render itself inoperable and a red indicator light will glow notifying the user there is no power and the device must be replaced. GFCIs provide state-of-the-art, dependable electrical shock protection. In addition to being tested to the highest standards to help ensure safety, Arrow Hart GFCIs will deny power and prevent re-setting if the device is no longer able to provide safe, protected power.

      Color    :    White
      Current Rating    :    15 A
      Dimensions    :    4.2 in L x 1.68 in W x 1.27 in D
      Frequency Rating    :    60 Hz
      Includes    :    Wallplate
      Material    :    Polypropylene
      Mounting Type    :    Wall
      NEMA Configuration    :    5-15R
      Number Of Poles    :    2
      Number of Wires    :    3
      Operating Temperature    :    -35 to 66 deg C
      Voltage Rating    :    125 V
      Wire Size    :    14 to 10 AWG
      Wiring Type    :    Back, Side
      • Performs periodic self-tests to ensure integrity of GFCI protection
      • Visual trip indicator light gives quick notification of a tripped or "end of life" condition
      • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
      • Ground termination with back wire clamp provides secure wiring and reduces installation time
      • Line side terminals are backed out and staked for fast installation
      • Horizontal test/reset button alignment provides larger unobstructed area
      • Test and reset buttons are color-matched to provide great aesthetics
      • Tapered back wire openings handle multiple wire sizes and types for applications up to #10 AWG solid or stranded wire
      • When downstream receptacles are wired from load side, a 20 A feed-through rating offers full protection
      • Line load miswiring protection
